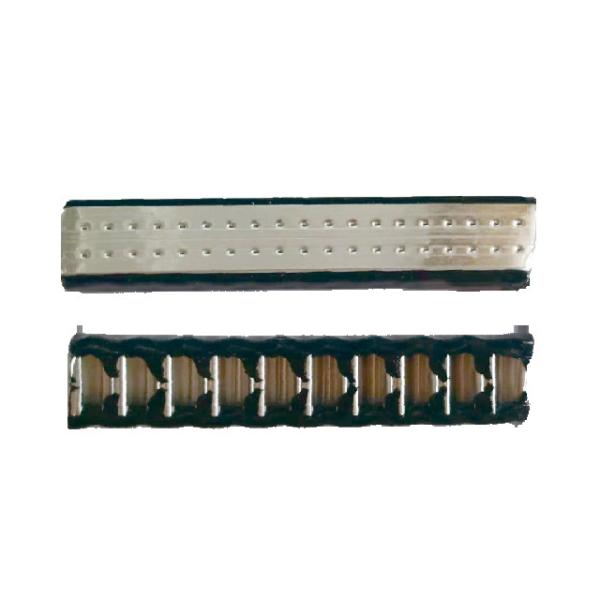

swiggle china Insulating glass aluminium butyl spacer

Name: swiggle china Insulating glass aluminium butyl spacer
Brand: Alger
Price: 0.265 USD

China swiggle china Insulating glass aluminium butyl spacer wholesale

Place of Origin : Liaoning, China

Brand Name : Alger

Model Number : Al-158

Packaging Details : Carton

MOQ : 10000 Meters

Price : $0.265 - $0.45/Meters

Warranty : 5 years

After-sale Service : Online technical support, Onsite Installation

Project Solution Capability : Others

Application : Hotel

Design Style : Null

Product name : swiggle china Insulating glass aluminium butyl spacer

Color : Black/gold/sliver

Usage : Insulating glass sealing

Size : 6-16mm

Packing : Carton

Payment Term : TT 30% Deposit

Sample : Avaiable

Port : Qingdao

Contact Now

Better sealing:Using german imported butyl rubber ,the sealing will be good.
Better water vapor barrier: Extra long water vapor barrier, it prevent the water vapor to coming in.
Better production efficiency , can process various shapes of anisotropic insulating glass.
Good air tightness : Polymer binder prevent water vapor to permeating. Good anti-high temperature perfermance.
Good resistance to low temperature.
Good anti-aging performance.

Size(mm)	Big carton	Small carton
Size(mm)		m	m
6	800	480
7	760	430
8	700	400
9	670	400
10	630	340
11	600	330
12	550	320
13	520	290
14	500	260
15	440	260
16	430	240

Use mention and attention

All the glass should be dry and clean.The insulating glass should be made by the following steps.
1.Putting the spacer on to the corner of one glass,then making thes pacer straight,at the same time keeping the spacer around the
surface of the glass,at the end,reserved 2.5mm-3.0mm to the edge of the glass and the spacer should be reserved about 20mm more
joint the pact pressing the joint,making no space in the circle.
2.Then putting another glass onto the one which has the spacer above,making sure the two pieces of glass are mutual alignment in
both vertical and horizonal.
3.Putting them into the hot press machine with the temperature between 110-140℃ inside and 50~60℃ the outlet.
4.According to the structure requirement of the insulating glass,two component silicone sealant could be putting outside of the
spacer.Then a piece of insulating glasss hould come out.
5.The butyl spacer must be carrie dout in accordance with this attention other wise may cause the seal leakage.

swiggle china Insulating glass aluminium butyl spacer
