Place of Origin : Liaoning, China
Brand Name : Alger
Certification : CE
Packaging Details : Films
Price : US3000
Model Number : AGM-005
MOQ : 1 set
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 5 sets per month
Delivery Time : 35 working days
Applicable Industries : Manufacturing Plant
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2020
Warranty of core components : 1 Year
Core Components : Motor
Condition : New
Production Capacity : High efficiency
Voltage : 380V
Power : 13kw
Dimension(L*W*H) : 8750*3000*3400mm
Weight : About 2600Kg
Warranty : 1 Year
Key Selling Points : Easy to Operate

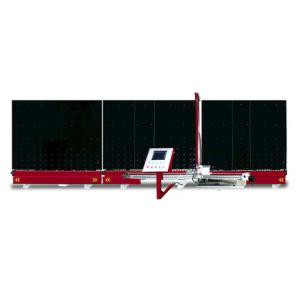

Product name : Automatic insulating glass sealing robot
Min.Glass size : 300*450
Max.Glass size : 2500*3500mm
Glass thickness : 3-12mm
Sealant-mixing system : Single Sealant-mixing system
Insulating glass thickness : 12-56mm
Sealing speed : 5-30m/min
Sealing width : 6-24mm
Sealing depth : 2-15mm
Power supply : 13kw
After Warranty Service : Video technical support, Online support
After-sales Service Provided : Online support, Video technical support
Port : Dalian
Product model | AL-2500-01 | AL-2500-02 |
Min.glass size | 300*450mm | 300*450mm |
Glass thickness | 3-12mm | 3-12mm |
Sealant-mixing system | Single sealant-mixing system | Two sealant-mixing system |
Insulating glass thickness | 12-56mm | 12-56mm |
Sealing speed | 5-30m/min | 5-30m/min |
Sealing width | 2-15mm | 2-15mm |
Conveyor speed | 0-48m/min | 0-48m/min |
Power supply | 13kw | 13kw |
Air supply | 0.5-0.8Mpa | 0.5-0.8Mpa |
Working height | 520-580mm | 520-580mm |
Dimension | 8750*3000*3400mm | 8750*3000*3400mm |
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Is it OK to print my logo on carton?
A:Yes,Please informe us formally before our production and confirm the design.
3.Q:Do you accept credit card payment?
A:According alibaba regulation,we accept TT/Western Union/MoneyGram.Different payment would have different require of customer.
4.Q:Can I have a sample?
A:Yes, but you should pay the freight.
5.Q:How do you make our business long-term and good relationship?
A:We will always keep the best quality product and the most competive price to ensure our clients the best interests. Also we will regard you as our good friend in life and a reliable partner in business cooperation.
![]() |
Automatic insulating glass sealing robot industrial double glazed glass sealing equipment Images |
