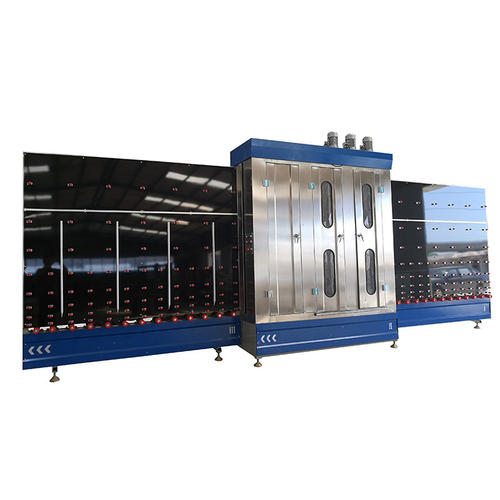

Vertical window glass washer machine

Name: Vertical window glass washer machine
Brand: Alger
Price: 2 USD

China Vertical window glass washer machine wholesale

Place of Origin : Liaoning, China

Brand Name : Alger

Certification : ce

Packaging Details : packed in film bag

Price : $2,500.00/Sets

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works

Showroom Location : None

Condition : New

Machine Type : Glass Washing and Drying Machine

Production Capacity : customerize

Voltage : 380V

Power : 110KW

Dimension(L*W*H) : 2840*1920*1000mm

Weight : 300KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Glass Thickness : 3-12mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : Motor, PLC, Engine

Products name : Vertical window glass washer machine

Min glass size : 420x420mm

Max glass size : 2000*2500mm

Usage : washing glass

Package : Film bag

MOQ : 1SET

Product Keywords : glass washing machine

After Warranty Service : Online support

Local Service Location : None

After-sales Service Provided : Online support, Video technical support

Contact Now

Product name	Vertical window glass washer machine
Glass thickness	3-12mm
Min Size of Glass	420*420mm
Max width of glass:	2000*2500mm
Dimension(LWH)	284019201000mm
Weight:	300kg

1. Composition

This machine is consists of three parts: feeding section, washing section and unloading

2.Machine briefty.

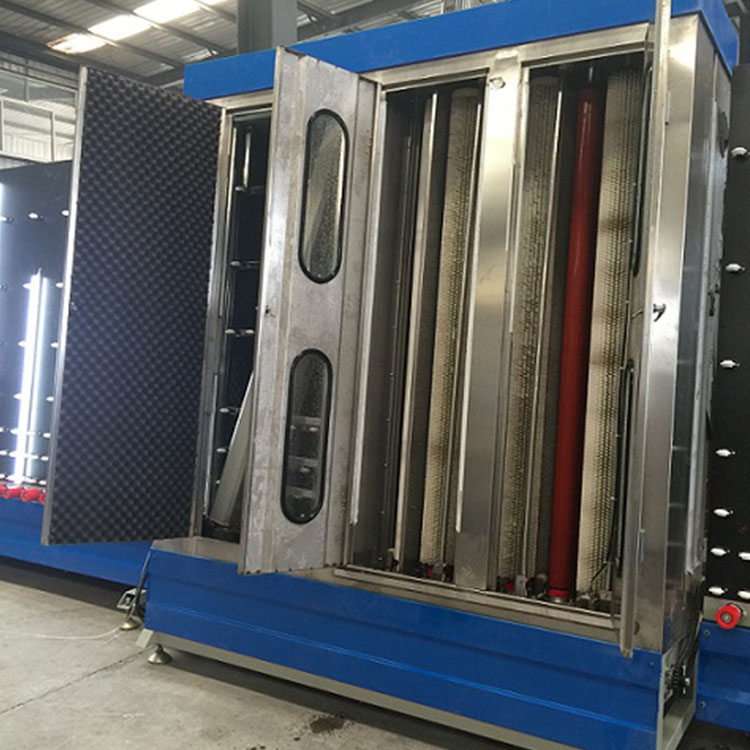

1.All the washing parts adopts stainless steel and rust-proof materials
2. 4 pcs of brushes, 4 pcs of spong rollers, to ensure the glass is cleaness and dryness after washing
3.The machine is easy to operate, all the operation can be finished on the operating table.

3.Water System
Made of 3water boxes and 4circulating water system, and the quality of water influence
the cleanliness of glass surface.
Air Road System
The distance between the air knives and plane can be adjusted, when the glass thickness changed, you need to adjust the distance.

4.Maintance
It is a very important matter to do routine maintenance for the machines, you should always observe the moving parts of
themachine, water system, air system, electrical system, in case of emergency immediately stop checking: bearing and lubrication
for all lubrication points lubrication in time.
(1)bearing and lubrication:Lubricationing to all lubrication place.
(2)Maintenance of the water system:
Water in the washing section is circular, the water need changing every day, to keep it cleaness.
You should wash water box and filtration device every month. Observation hole on the cover of washing section is used to check
thesuituation of water spraying.
(3)Maintenance shunt system
Regularly check the operation of the blower, stop immediately in case of an unusual sound, informing maintance department to check
machines.
Cleaning Air inlet filter grid ever month, keeping the blower room clean to prevent dust being sucked air passage, pollution
glass.
The distance between the air knives and plane can be adjusted, when the glass thickness changed, you need to adjust the distance.

Company Profile

About us.

Liaoning Alger Building Materials And Machine Co.,LTD locates in Bayuquan, Yingkou,Liaoning province, a beautiful coastal city.
Alger was established in 2008. Alger is committed to produce andprovideenvironmental energy-saving building materials
andadvanced intelligent efficiency machineries with better technical support and service. We own several subsidiaries to
manufacturematerials.
Our team is young in average age but with mordern spirit of high technology. The products are widely recognized and trustedbyusers
and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life tocontact us
for future business relationships and mutual success.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

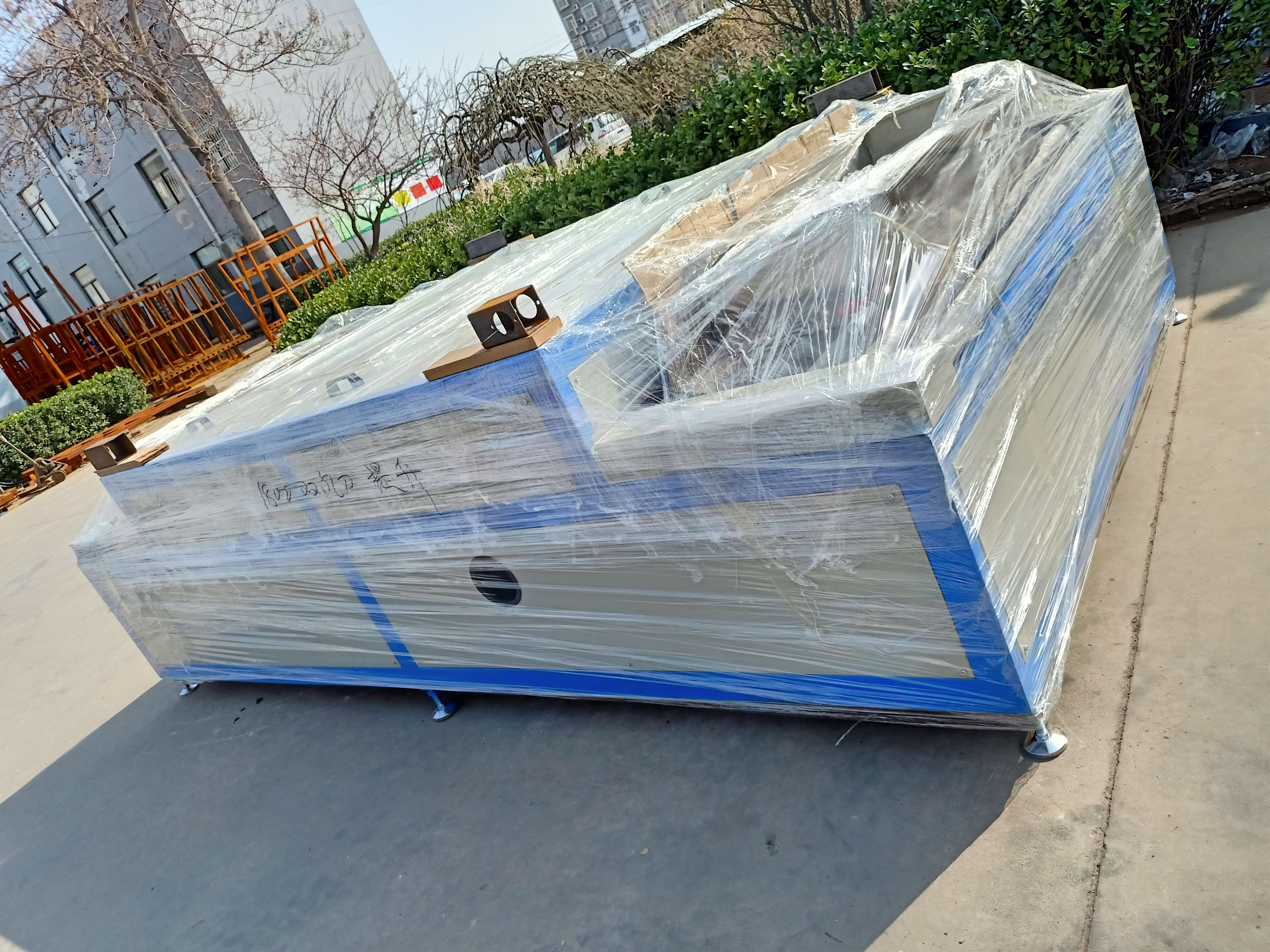

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: Can I have a sample?
A: Yes of couse, but you should pay the freight.
Q2: How do I get fast response?
A: Send the E-mail to us or call us directly.
Q3: What about the lead time?
A: Sample usually needs 5-7 days, mass production time needs 15-30 days
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional for
big quantity.
Q5. How to proceed an order for your products?
a: Firstly let us know your requirements or needs.
b: Secondly We quote according to your requirements or our suggestions.
c: Thirdly customer confirms the samples and places deposit for formal order. Also you can get the testing if necessary.
d: Fourthly We arrange the production and ship to you.
